Featured image of post Analyzing How GoFrame Dynamically Loads Configuration Files and the Invocation of runtime.Caller

Analyzing How GoFrame Dynamically Loads Configuration Files and the Invocation of runtime.Caller

Compiled languages don't handle directory references as conveniently as scripting languages. Let's explore how GoFrame achieves this.

According to the official documentation:

Default Directory Configuration
When initializing the gcfg configuration management object, it automatically adds the following configuration file search directories by default:

  1. Current working directory and its config subdirectory: e.g., /home/www and /home/www/config when working in /home/www
  2. Executable file directory and its config subdirectory: e.g., /tmp and /tmp/config for a binary in /tmp
  3. Main package directory and its config subdirectory (only effective in source development): e.g., /home/john/workspace/gf-app and /home/john/workspace/gf-app/config for a main package in that directory

During development, the configuration file can always be found correctly through the main package location regardless of binary relocation. Let’s examine the implementation in the GoFrame source code.

Looking at the gcfg.New method:

func New(file ...string) *Config {
    // ... [initialization logic]

    // Customized dir path from env/cmd handling
    if customPath := gcmd.GetOptWithEnv(commandEnvKeyForPath).String(); customPath != "" {
        // ... [custom path logic]
    } else {
        // Default directory processing
        // 1. Working directory
        if err := c.AddPath(gfile.Pwd()); err != nil {
            intlog.Error(context.TODO(), err)
        }

        // 2. Main package directory (development environment)
        if mainPath := gfile.MainPkgPath(); mainPath != "" {
            if err := c.AddPath(mainPath); err != nil {
                intlog.Error(context.TODO(), err)
            }
        }

        // 3. Executable directory
        if selfPath := gfile.SelfDir(); selfPath != "" {
            if err := c.AddPath(selfPath); err != nil {
                intlog.Error(context.TODO(), err)
            }
        }
    }
    return c
}

The key method gfile.MainPkgPath() works as follows:

func MainPkgPath() string {
    // ... [initial checks]

    // Iterate through call stack
    for i := 1; i < 10000; i++ {
        pc, file, _, ok := runtime.Caller(i)
        if !ok {
            break
        }

        // Filter Go standard library paths
        if isStandardLibraryFile(file) {
            continue
        }

        // Check if it's a main package file
        if strings.Contains(getFileContent(file), "package main") {
            return filepath.Dir(file)
        }
    }

    // Fallback directory search
    // ... [directory traversal logic]
}

Key implementation points:

  1. Call Stack Traversal: Uses runtime.Caller to traverse up to 10,000 call frames
  2. Main Package Identification: Checks files for package main declaration
  3. Path Validation: Verifies path existence and proper directory structure

How runtime.Caller Works Internally

The Go runtime maintains execution context through:

// Simplified runtime.Caller implementation
func Caller(skip int) (pc uintptr, file string, line int, ok bool) {
    rpc := make([]uintptr, 1)
    n := callers(skip+1, rpc[:]) // Adjust for wrapper frames
    frame, _ := CallersFrames(rpc).Next()
    return frame.PC, frame.File, frame.Line, true
}

Key components:

  1. Program Counter (PC): Unique identifier for execution position
  2. Symbol Table: Built during linking (go build phase)
  3. Module Data: Stores debug information and source mapping

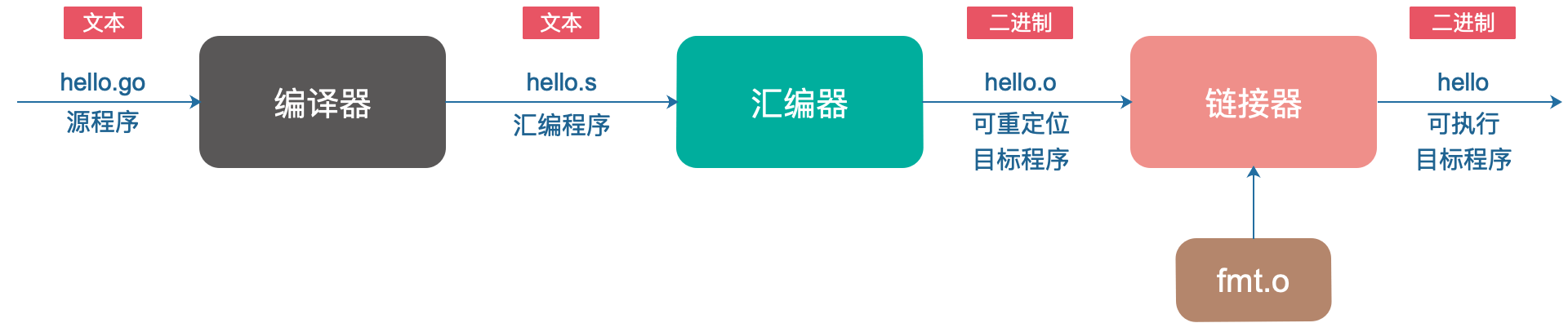

Compilation and Linking Process (Image from Go Compilation Overview)


Practical Implications

  1. Development vs Production

    • Development: Reliable main package detection through source analysis
    • Production: Falls back to executable directory detection
  2. Performance Considerations

    • Call stack traversal has O(n) complexity but optimized for typical cases
    • Path caching (mainPkgPath.Val()) prevents repeated computation
  3. Edge Case Handling

    • Recursive directory search when direct detection fails
    • Special handling for cgo and inline functions

This implementation demonstrates how GoFrame combines runtime capabilities with file system analysis to create a robust configuration loading mechanism that works across different environments.
